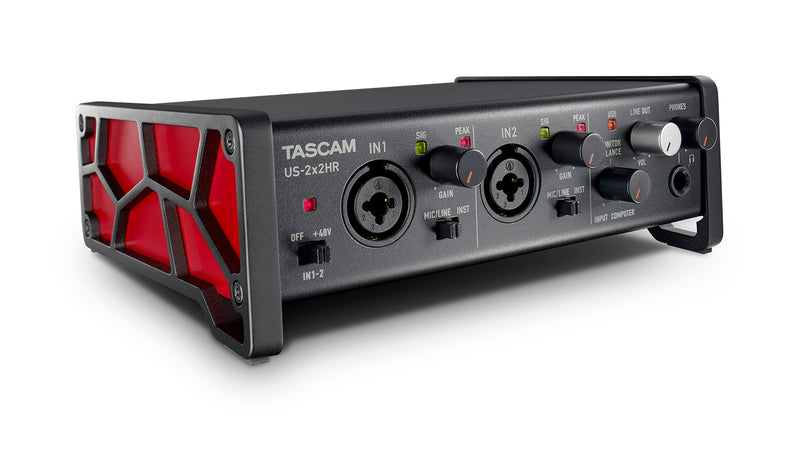

Tascam US-2x2HR

The optimal interface for music/multimedia creators

The US-2x2HR is equipped with 2 mic/line inputs with guitar input support that can be used in various music/multi-media production environments such as vocal/guitar simultaneous recordings, as wells as high-quality sound recordings for video production. The unit is also equipped with a USB-C port easily powered by USB bus power.

Natural, crisp & clear sound quality thanks to the implemented Ultra-HDDA Mic Preamp with 192 kHz support

High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Zero-latency direct monitoring function

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Create quality content with bundled software

The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.

US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.

Interface for podcasts and live streaming

The US-2x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-2x2HR also supports OBS, which is popular and used worldwide.

Equipped with MIDI IN/OUT

The MIDI IN/OUT terminals enable other MIDI external devices such as keyboards, drum machines, controllers, etc. to be synchronized and controlled.

New audio interface engine

Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

Robust metal casing

The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek and eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.

Features at a glance

• 2-in/2-out USB audio interface
• Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
• Supports up to 24-bit/192 kHz audio formats
• 2 Combo (XLR) combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
• 2 Combo (TRS) line inputs with guitar input support
• TRS line output 1-2
• Headphone output
• Equipped with MIDI IN/OUT terminals
• USB Type-C connection (USB Type-A to Type-C cable included)
• Powered by USB bus power
• Zero-latency direct monitoring
• Compatible with iPad and other iOS devices
• Extensive line-up of bundled software
  • Steinberg Cubase LE, Cubasis LE 3
  • IK Multimedia Sample Tank 4 SE
  • Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
• Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
• OBS support



Spec description

Sampling frequency	44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate	24bit
Analog audio inputs
MIC IN	IN 1 / IN 2
Connector	XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance	2.2k ohms
Maximum input level (GAIN:MIN)	+9dBu (2.183Vrms)
Gain	56dB
INST IN	IN 1 / IN 2
Connector	6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at MIC/LINE INST switch)
Input impedance	1M ohms or more
Maximum input level (GAIN:MIN)	+10dBV(3.162Vrms)
Gain	56dB
LINE IN	IN 1 / IN 2
Connector	6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED (When set to "MIC/LINE" at MIC/LINE INST switch)
Input impedance	10k ohms
Maximum input level (GAIN:MIN)	+20dBu(7.746Vrms)
Gain	56dB

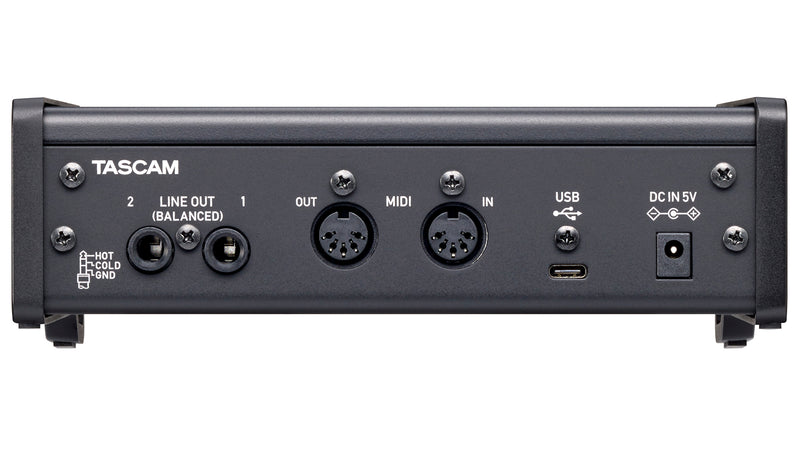

Analog audio outputs
LINE OUT	1-2
Connector	6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
Output impedance	210 ohms
Nominal output level	+4dBu (1.228Vrms)
Maximum output level	+20dBu (7.746Vrms)
PHONES
Connector	6.3mm(1/4") stereo phone jack
Maximum output level	18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)
MIDI IN /OUT
Connector	Din 5-pin
Format	Standard MIDI format
USB
Connector	USB Type-C
Format	USB2.0 HIGH SPEED (480Mbps)
Power
When connected PC	USB bus powered AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS/iPadOS	AC Adapter (TASCAM PS-P520E, sold separately)
Power consumption	1.75W
Dimensions	186(W) × 65(H) × 160(D)mm (including protrusions)
Weight	2.43lb (1.1kg)
Operating temperature	5 to 35°C
Accessories	USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)



Audio performance

Mic amp EIN (equivalent input noise)	-128dBu or lower
Frequency response
MIC / LINE IN
44.1k/48k Hz	20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz	20Hz to 40kHz, +0dB/-0.4dB(JEITA)
LINE OUT
44.1k/48k Hz	20Hz to 40kHz, +0.2dB/-0.1dB(JEITA)
88.2k/96k Hz	20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N	0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
	0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
	0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio	110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
	108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight))
	110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk	95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)



Computer system requirements

Windows

Compatible computers	Windows computer with a USB 2.0 (or higher) port
CPU type/speed	2GHz or faster dual core processor (x86)
Memory	2GB or more
Driver	ASIO2.0, WDM, MIDI



Mac OS

Compatible computers	Mac with a USB 2.0 (or higher) port
CPU type/speed	2GHz or faster dual core processor
Memory	2GB or more
Driver	Core Audio, Core MIDI



iOS/iPadOS Device

Driver

Core Audio
