Tascam : DR-60D MK II

by Tascam
Availability:
Available for pre-order. Please contact us for ETA.
Original price ฿8,990.00 - Original price ฿8,990.00
Original price
฿8,990.00
฿8,990.00 - ฿8,990.00
Current price ฿8,990.00

Delivery Time

1-2 working days for “Ready-To-Ship” Orders Monday-Friday, dispatching mainly from Bangkok, Thailand.

For products marked "Available For Order" Please contact us for ETA

Fast Delivery

Free for orders over ฿15,000 and delivered within 2 hours*

Contact us for more details.

Request a quote

4-track Recorder/Mixer for Production Audio



Portable Recorder Designed for DSLR Filmmakers

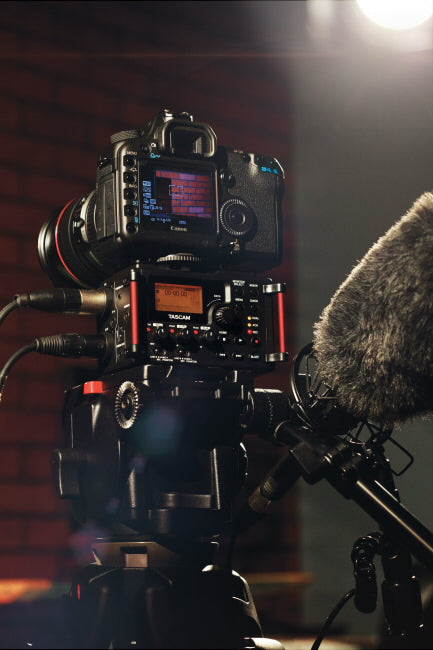

TASCAM's DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers. The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in.



The DR-60DmkII is the next generation of 4-track solid-state recording, based on TASCAM’s decades of recording innovation. The upgraded HDDA microphone preamps provide up to 64dB of gain, capturing every nuance of a performance. Up to four channels at a time can be recorded to the internal SD Card, at up to 96kHz/24-bit WAV file resolution. Two of the mic inputs utilize locking XLR connectors with 48V phantom power, the other two use an 1/8” stereo connector for wireless and lavaliere microphones.

A Camera Output sends the mic mix to the camera for later synchronization, and a Camera Input is provided for monitoring playback. An additional headphone out and line out assist the crew during filming. The DR-60DmkII is designed for low-noise operation, including soft touch buttons and dedicated gain controls.

Multiple recording modes are available on the DR-60DmkII. Four-Channel Mode records all four microphone inputs. Dual Recording is an alternate setting, capturing a copy of your audio at a lower level for a distortion-free safety track. Menus and operation are well laid out, owing to decades of innovative recording design.

Reach beyond the limited performance of your camera’s audio to capture the other half of your film. At a cost less than competing preamps, the TASCAM DR-60DmkII is the ultimate 4-track recorder designed for filmmakers, television, live events and web broadcast.



Recording media SD card (64MB to 2GB), SDHC card (4GB to 32GB)
Recording format
WAV 44.1k/48k/96k Hz, 16/24-bit
BWF 44.1k/48k/96k Hz, 16/24-bit
Number of channels 4-channel (stereo x2)
Analog audio input
1/L, 2/R connectors
Connector XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack
Set to "MIC / MIC+PHANTOM"
Input impedance 2kΩ
Phantom power 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH)
Maximum input level 0dBu
Minimum input level –72dBu
MIC input gain TRIM MAX
LOW +11dB
MID +36dB
HIGH +52dB
HIGH+PLUS +64dB
Set to “LINE”
Input impedance 10kΩ or more
Standard input level +4dBu
Maximum input level +24dBu
3-4 connector
Connector 1/8" (3.5mm) stereo mini jack (this connector can be supplied plug-in power)
Input impedance 10kΩ
Maximum input level +10dBV
Minimum input level –50dBV
MIC input gain TRIM MAX
LOW +3dB
HIGH +26dB
HI + PLUS +38dB
CAMERA IN connector
Connector 1/8" (3.5mm) stereo mini jack
Input impedance 10kΩ
Standard input level –10dBV
Maximum input level +6dBV
Analog audio output
CAMERA OUT connector
Connector 1/8" (3.5mm) stereo mini jack
Output impedance 200Ω
Standard output level –50dBV
Maximum output level –30dBV
LINE OUT connector
Connector 1/8" (3.5mm) stereo mini jack
Output impedance 200Ω
Standard output level –10dBV
Maximum output level +10dBV
PHONES connector
Connector 1/8" (3.5mm) stereo mini jack
Maximum output level 50mW + 50mW
USB
Connector Mini-B type
Format USB2.0 HIGH SPEED mass storage class
REMOTE
Connector 2.5mm TRS jack
Power Four AA batteries (Alkaline or NI-MH),
USB bus power,
Dedicated AC adapter (TASCAM PS-P515U, sold separately),
Dedicated external battery pack (TASCAM BP-6AA, sold separately)
Power consumption 5.4W
Continuous operation time 2ch WAV, 44.1kHz, 16-bit Rec, *All times are approximate.
DR-60D alone
Alkaline batteries (EVOLTA) 2-½ hours (Phantom ON)
4-½ hours (Phantom OFF)
NI-MH batteries (eneloop) 3-¼ hours (Phantom ON)
5 hours (Phantom OFF)
NI-MH batteries (eneloop pro) 3-¾ hours (Phantom ON)
6 hours (Phantom OFF)
DR-60D with BP-6AA
Alkaline batteries (EVOLTA) 5-½ hours (Phantom ON)
10-½ hours (Phantom OFF)
NI-MH batteries (eneloop) 7-½ hours (Phantom ON)
12 hours (Phantom OFF)
NI-MH batteries (eneloop pro) 9-½ hours (Phantom ON)
14-½ hours (Phantom OFF)
Dimensions (W×H×D) 5.2" × 3.7" × 3.1" / 133 × 93.2 × 78 mm (with the top adapter attached)
Weight 1.12 lbs. / 510 g (excluding batteries)
Operating temperature 32˚F to 104˚F / 0˚C to 40˚C
Standard accessories USB cable, warranty card, Owner's manual
